Carbon Steel ME Cabinet
The Carbon Steel ME Cabinet is a compact industrial enclosure optimized for equipment integration and on-site installation. It is constructed from high-strength cold-rolled steel (1.5mm for the body, 2.0mm for the door, and 2.5mm for the mounting plate). The surface undergoes phosphating and electrostatic powder coating (standard RAL7035 light gray), offering excellent rust and weather resistance. Its compact, rational structural design ensures high strength while effectively saving installation space, making it particularly suitable for applications with space constraints or strict cabinet size requirements.
Product Description
The Carbon Steel ME Cabinet is a compact industrial enclosure optimized for equipment integration and on-site installation. It is constructed from high-strength cold-rolled steel (1.5mm for the body, 2.0mm for the door, and 2.5mm for the mounting plate). The surface undergoes phosphating and electrostatic powder coating (standard RAL7035 light gray), offering excellent rust and weather resistance. Its compact, rational structural design ensures high strength while effectively saving installation space, making it particularly suitable for applications with space constraints or strict cabinet size requirements.
Key Features
Compact Design: Optimized structural layout and a space-efficient footprint maximize equipment capacity and integration capabilities within limited spaces.
High Protection Rating: Equipped with sealing gaskets, it achieves protection ratings from IP54 to IP66, effectively resisting dust, water splashes, and general corrosion.

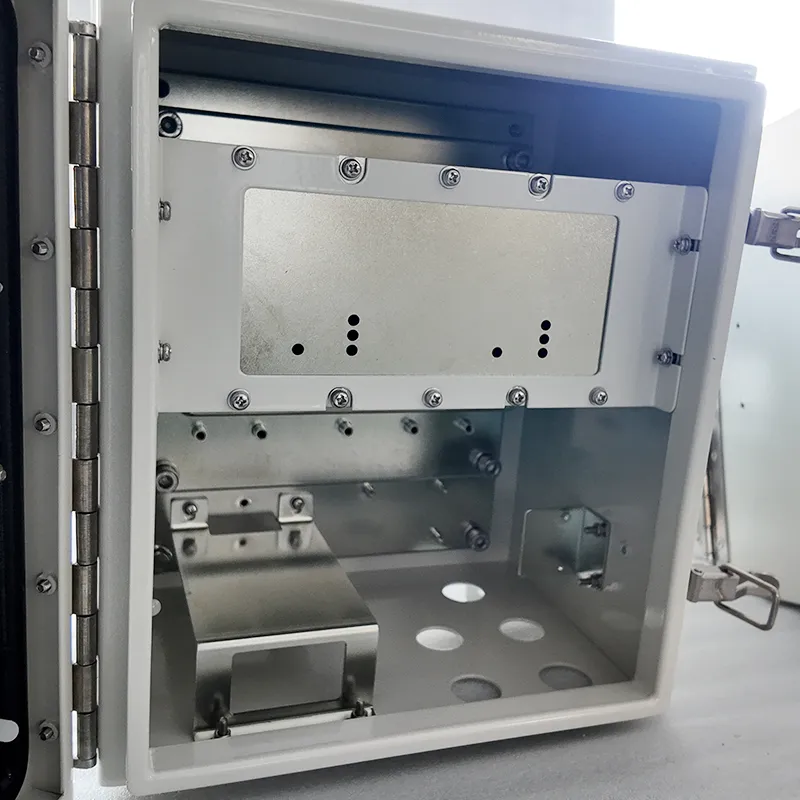

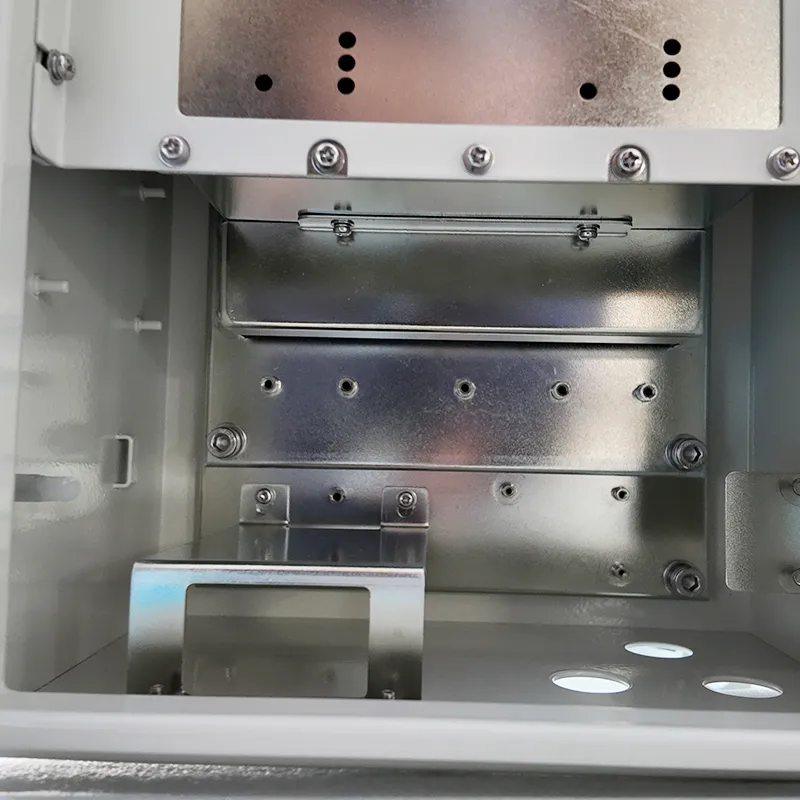

Modular Flexibility: The interior features a dense grid of standard modular holes; mounting plates and cross-beams are adjustable in height and position, facilitating flexible equipment layout and future expansion.
Easy Installation and Maintenance: Removable side and back panels, along with standard bottom cable entry points and support for front/rear cabling, ensure high efficiency during on-site installation and equipment maintenance.
Unique Advantages
High Space Utilization: The compact design is ideal for retrofitting, equipment upgrades, or space-constrained projects, maximizing the use of available sites.
Cost-Effectiveness: Offers a competitive cost advantage over imported brands while delivering comparable protection and structural performance—an economical and practical choice.
Rapid Delivery: Stock is available for standard specifications, and lead times for custom configurations are significantly shorter than those of traditional, long-lead-time cabinets.
Strong Compatibility and Scalability: Dimensions and mounting interfaces are compatible with mainstream accessory systems, supporting flexible cabinet ganging and functional expansion.
Typical Applications
The Carbon Steel ME Cabinet is widely used for industrial automation control cabinets (integrating PLCs and variable frequency drives), on-site power distribution units, embedded electrical control boxes for smart manufacturing equipment, modular cabinets for new energy storage systems, and compact control nodes in rail transit depots and stations.
Key Features
Compact Design: Optimized structural layout and a space-efficient footprint maximize equipment capacity and integration capabilities within limited spaces.
High Protection Rating: Equipped with sealing gaskets, it achieves protection ratings from IP54 to IP66, effectively resisting dust, water splashes, and general corrosion.
Modular Flexibility: The interior features a dense grid of standard modular holes; mounting plates and cross-beams are adjustable in height and position, facilitating flexible equipment layout and future expansion.
Easy Installation and Maintenance: Removable side and back panels, along with standard bottom cable entry points and support for front/rear cabling, ensure high efficiency during on-site installation and equipment maintenance.
Unique Advantages
High Space Utilization: The compact design is ideal for retrofitting, equipment upgrades, or space-constrained projects, maximizing the use of available sites.
Cost-Effectiveness: Offers a competitive cost advantage over imported brands while delivering comparable protection and structural performance—an economical and practical choice.
Rapid Delivery: Stock is available for standard specifications, and lead times for custom configurations are significantly shorter than those of traditional, long-lead-time cabinets.
Strong Compatibility and Scalability: Dimensions and mounting interfaces are compatible with mainstream accessory systems, supporting flexible cabinet ganging and functional expansion.
Typical Applications
The Carbon Steel ME Cabinet is widely used for industrial automation control cabinets (integrating PLCs and variable frequency drives), on-site power distribution units, embedded electrical control boxes for smart manufacturing equipment, modular cabinets for new energy storage systems, and compact control nodes in rail transit depots and stations.
