Electrical Control Cabinet
Chaoyou Precision Manufacturing Industrial Electrical Control Cabinet delivers performance comparable to original equipment with superior cost-effectiveness, widely used for installation and protection of electrical and automation systems.
Carbon Steel PS Cabinet
The Carbon Steel PS Cabinet is constructed from a nine-fold profile structure assembled with T-joints. The main body uses high-quality cold-rolled steel sheets (1.5mm for the cabinet, 2.0mm for the doors, and 2.5mm for the mounting plate). The surface is treated with phosphated primer followed by electrostatic powder coating with RAL7035 light gray, providing excellent weather resistance and protection. The Carbon Steel PS Cabinet features a modular design, supporting independent use of a single cabinet or multi-cabinet installation, offering high versatility and making it a cost-effective standard configuration for industrial environments.
Read More Send Inquiry
304 Stainless Steel PS Cabinet
The 304 Stainless Steel PS Cabinet retains the modular structure of the nine-fold profile while being constructed entirely of AISI 304 stainless steel. The surface is brushed or sandblasted, presenting a metallic texture and delicate grain. This cabinet combines structural strength with corrosion resistance, making it particularly suitable for humid, highly corrosive, or clean environments with high cleanliness requirements.
Read More Send Inquiry
316 Stainless Steel PS Cabinet
The 316 Stainless Steel PS Cabinet is constructed from a higher grade of AISI 316 stainless steel, further enhancing its corrosion resistance compared to 304 stainless steel, especially designed for harsh environments with high salinity, strong acids and alkalis, and high temperature and humidity. The structure utilizes nine-fold profiles and tee fittings for assembly, achieving a balance between high strength and modularity.
Read More Send Inquiry
Carbon Steel ES Cabinet
The Carbon Steel ES Cabinet is an industrial enclosure featuring a frame structure made from five-fold profiles. The main body is constructed from high-quality cold-rolled steel (1.5mm for the enclosure body, 2.0mm for the door, and 2.5mm for the mounting plate), finished with a phosphating primer and electrostatic powder coating; the standard color is RAL7035 light gray. It utilizes an integrated welded frame combined with modular assembly techniques and features non-removable side panels, making it specifically designed for standalone applications requiring high levels of protection.
Read More Send Inquiry
304 Stainless Steel ES Cabinet
The 304 Stainless Steel ES Cabinet is constructed entirely from AISI 304 stainless steel, featuring a frame made of five-fold profiles. Its surface undergoes brushing or sandblasting, resulting in an attractive metallic finish and excellent rust resistance. While inheriting the high-protection and standalone capabilities of the ES cabinet series, this model offers superior corrosion resistance, making it ideal for industrial environments characterized by humidity, corrosive elements, or strict cleanliness requirements.
Read More Send Inquiry

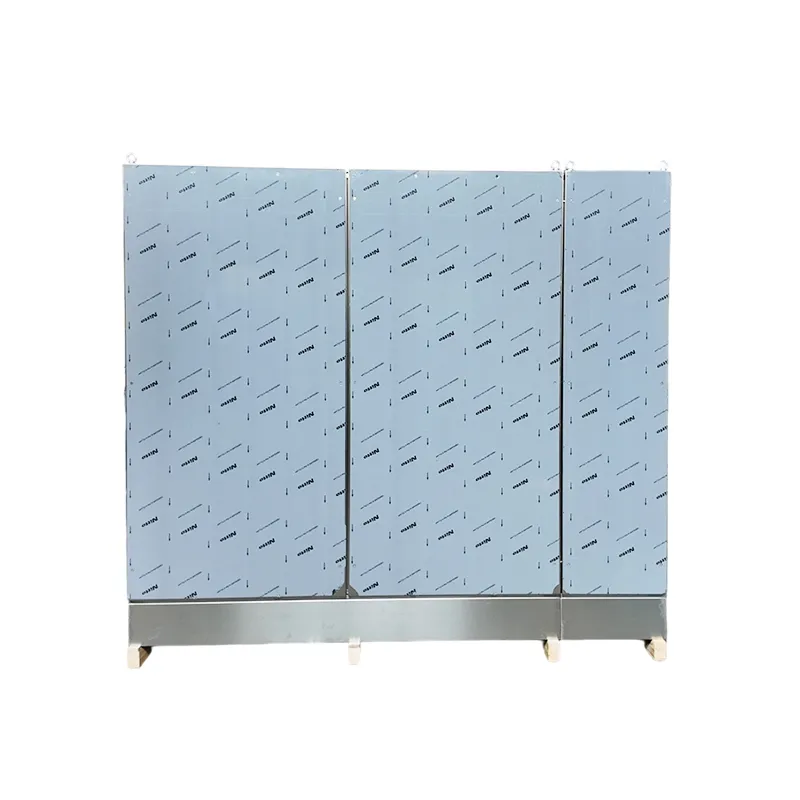

316 Stainless Steel ES Cabinet
The Carbon Steel ES Cabinet is an industrial enclosure featuring a frame structure made from five-fold profiles. The main body is constructed from high-quality cold-rolled steel (1.5mm for the enclosure body, 2.0mm for the door, and 2.5mm for the mounting plate), finished with a phosphating primer and electrostatic powder coating; the standard color is RAL7035 light gray. It utilizes an integrated welded frame combined with modular assembly techniques and features non-removable side panels, making it specifically designed for standalone applications requiring high levels of protection.
Read More Send Inquiry

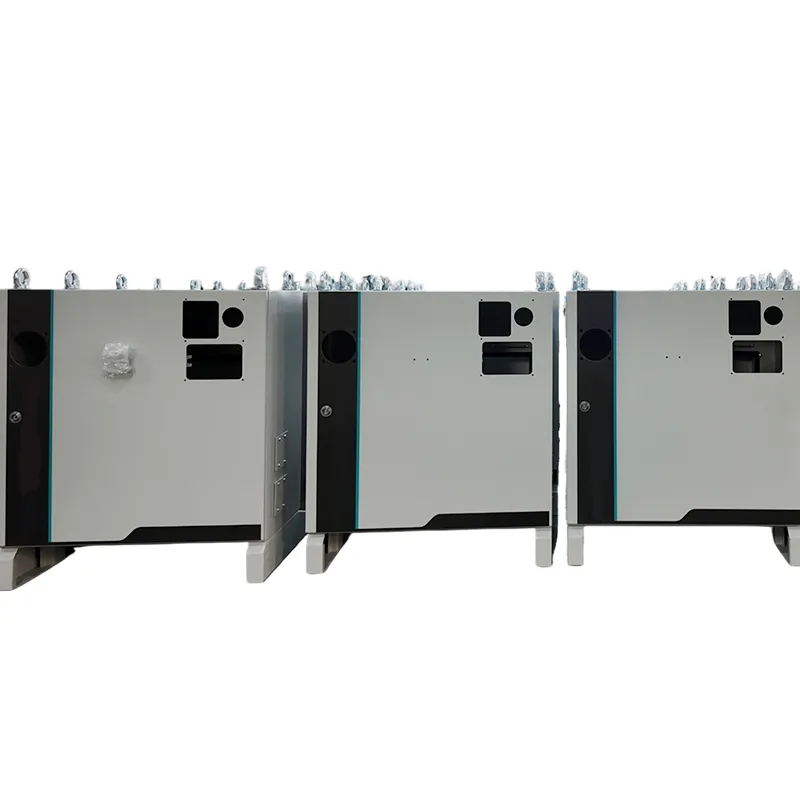

Carbon Steel ME Cabinet
The Carbon Steel ME Cabinet is a compact industrial enclosure optimized for equipment integration and on-site installation. It is constructed from high-strength cold-rolled steel (1.5mm for the body, 2.0mm for the door, and 2.5mm for the mounting plate). The surface undergoes phosphating and electrostatic powder coating (standard RAL7035 light gray), offering excellent rust and weather resistance. Its compact, rational structural design ensures high strength while effectively saving installation space, making it particularly suitable for applications with space constraints or strict cabinet size requirements.
Read More Send Inquiry

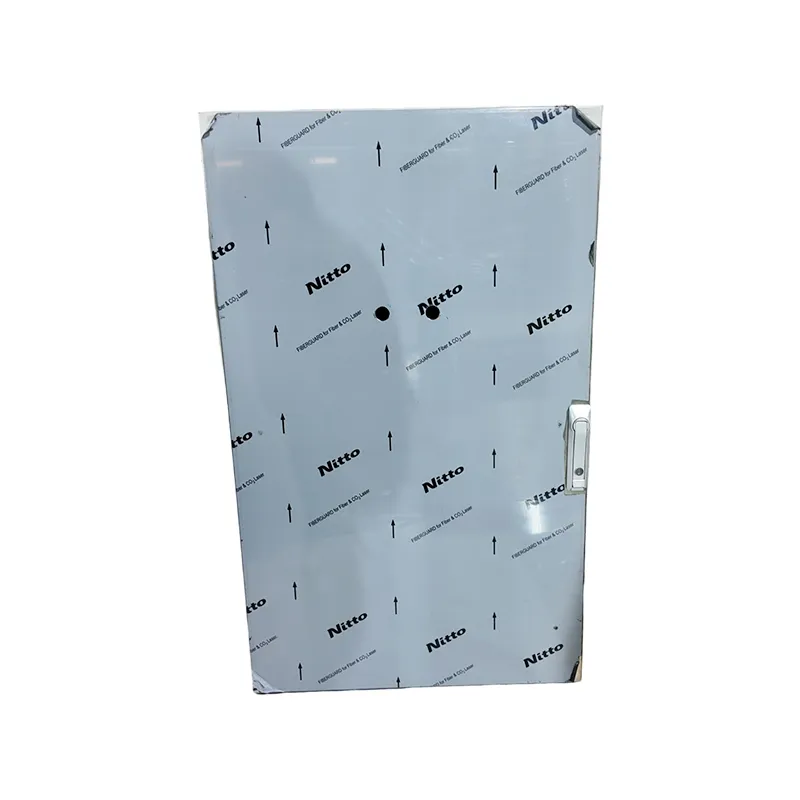

304 Stainless Steel ME Cabinet
The 304 Stainless Steel ME Cabinet is constructed from AISI 304 stainless steel and upholds the compact design philosophy of the ME cabinet series. Its surface features a refined brushed or sandblasted finish, offering an attractive metallic aesthetic alongside excellent corrosion resistance and ease of cleaning. This cabinet is ideally suited for industrial environments where space is limited and conditions involve moisture, corrosives, or strict hygiene requirements, effectively balancing protection, corrosion resistance, and space efficiency.
Read More Send Inquiry

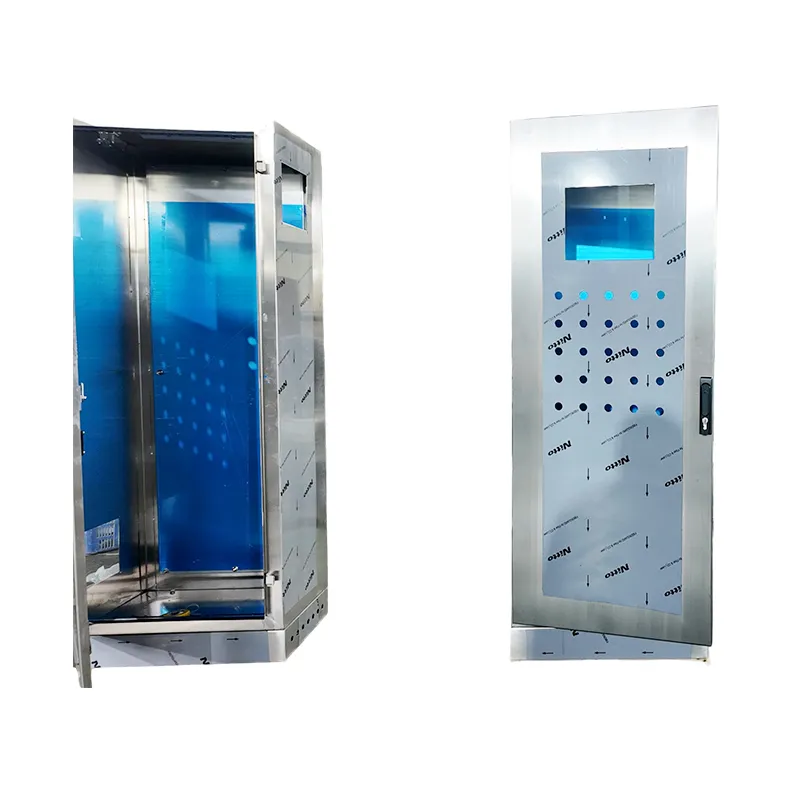

316 Stainless Steel ME Cabinet
The 316 Stainless Steel ME Cabinet represents the pinnacle of corrosion resistance in compact industrial cabinets. Constructed from AISI 316 stainless steel containing molybdenum (Mo), its tight-fitting design provides unparalleled protection in extreme corrosive environments. The 316 Stainless Steel ME Cabinet is designed for applications where space is extremely limited and environments are exceptionally harsh, such as high salt spray, strong chemical corrosion, or high temperature and humidity conditions.
Read More Send Inquiry- Page 1 of 1
